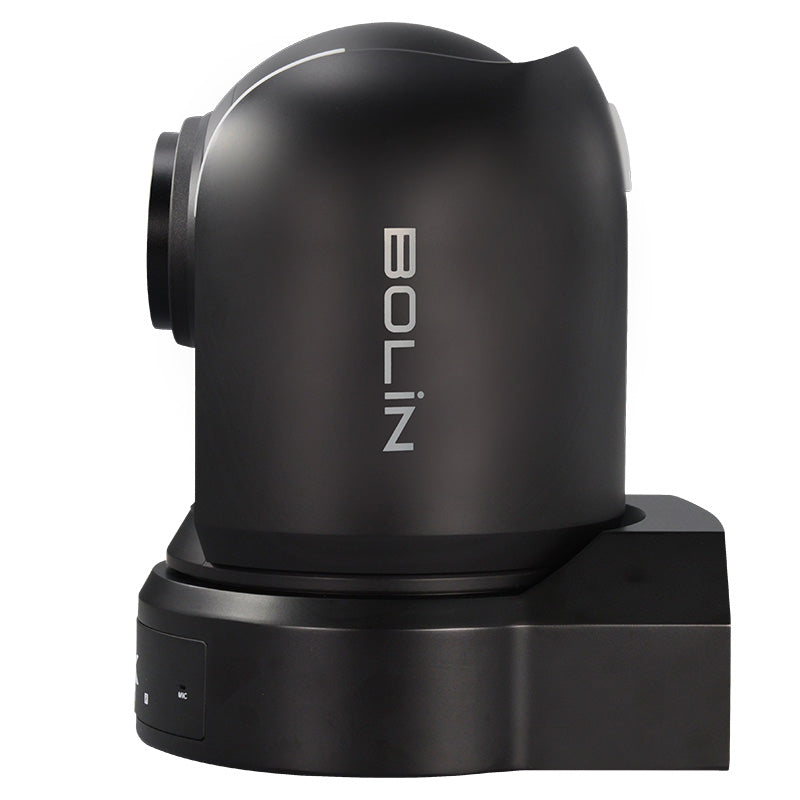

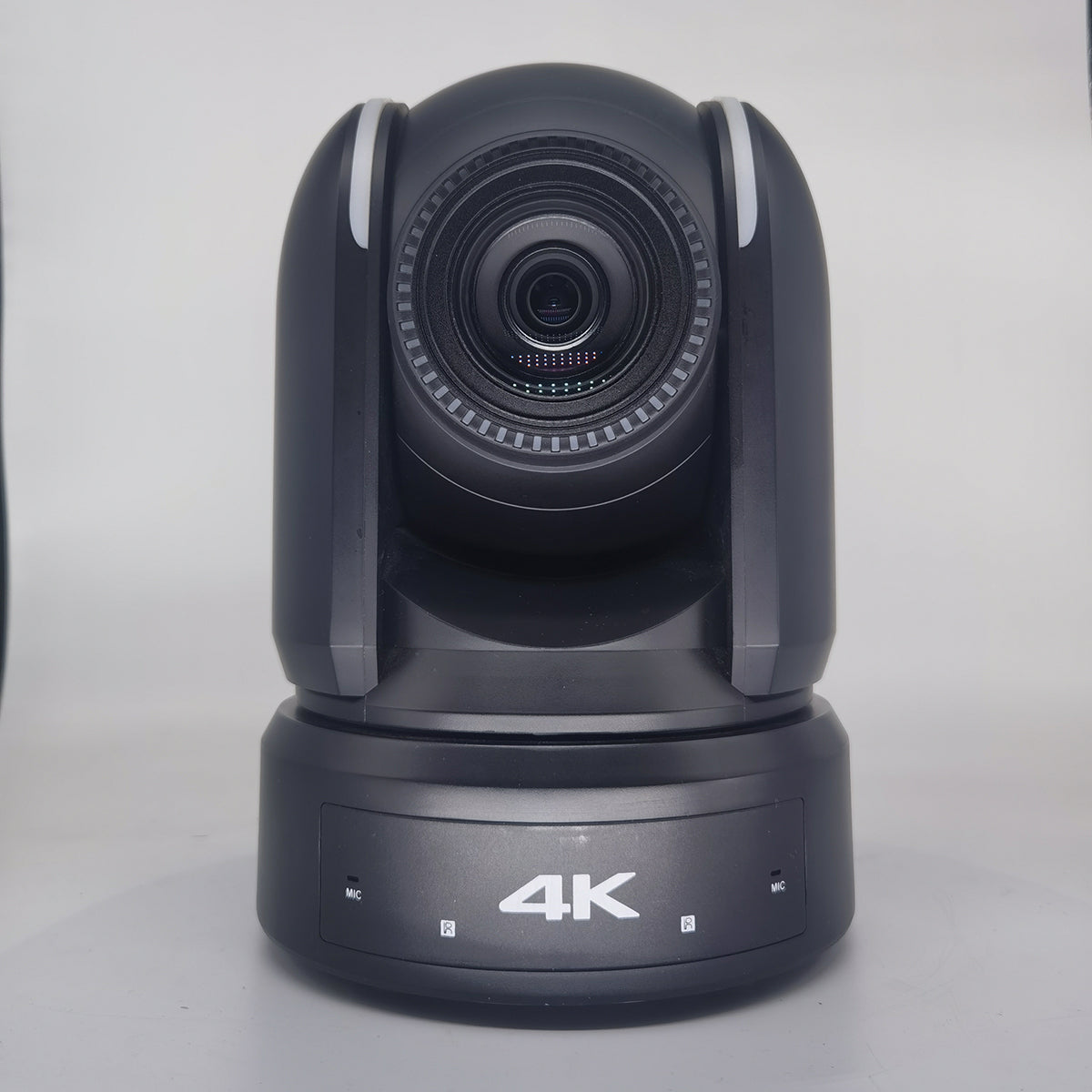

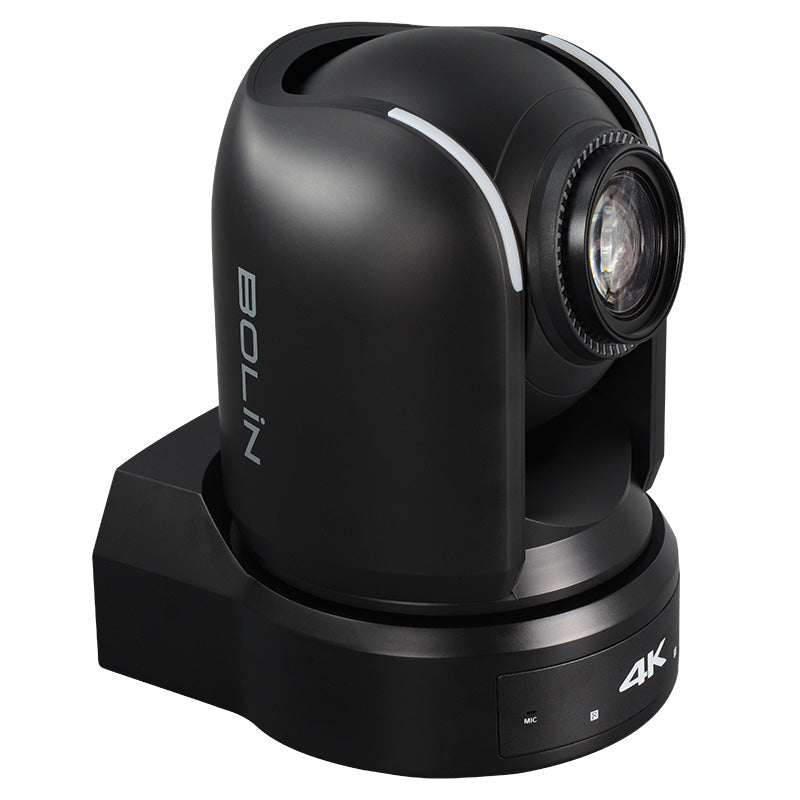

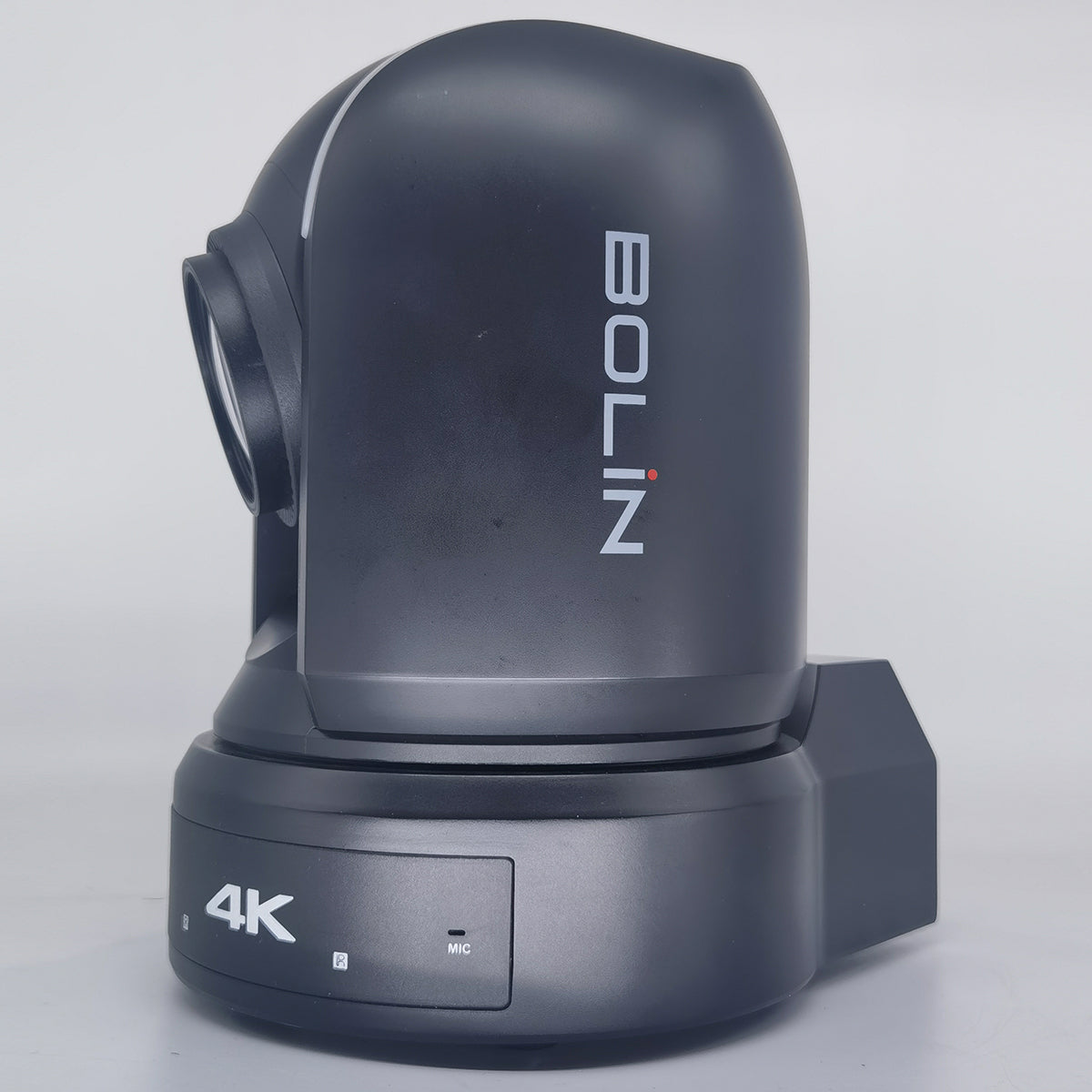

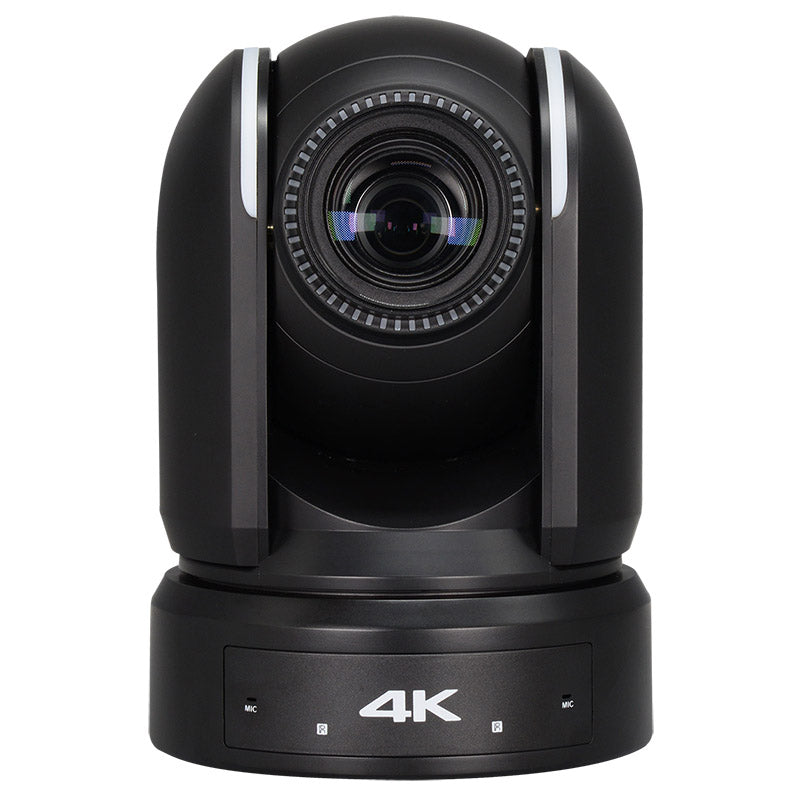

4K PTZ Camera 1″ CMOS Sensor (BC-9 SERIES) - Used Product

▪Sony 4K image block
▪1.0-type back-illuminated Exmor R CMOS sensor
▪Number of effective pixels: 14.2 Megapixels
▪Picture elements: 3840 x 2160, 8.29 Megapixels
▪Lens: Vario-Sonnar T lens, Optical Zoom 12X
▪Tele Convert Mode: When turn on, gain 2X-24X zoom range with 1080p resolution, up to 48X with SRZ
▪Digital Zoom: with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.
▪Horizontal Angle of View: 64.6˚ (Wide) - 6.1˚ (Tele)
▪Aperture: 0.5 lx (1/30 sec, 50%, High Sensitivity mode On)
▪WDR: YES(130dB)
▪Video Output: 6G/3G-SDIX2, HDMI(1.4)X2, IP, HDBaseT(Module Optional), Optical SDI (Module Optional)
▪Color Precision: 10bit(SDI), 8bit(HDMI), YCbCr, 4:2:2, ▪Color Space: YUV
▪IP Video Stream: Up to 4K/30 and 1080p60

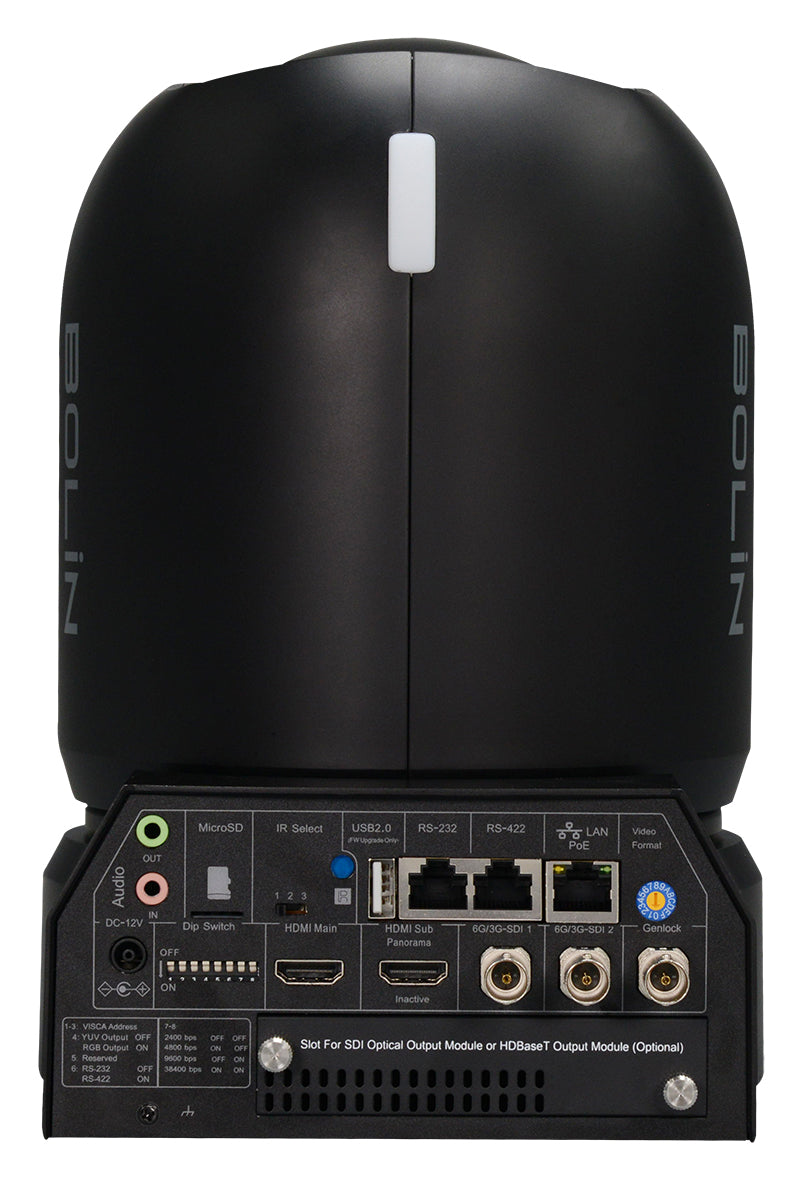

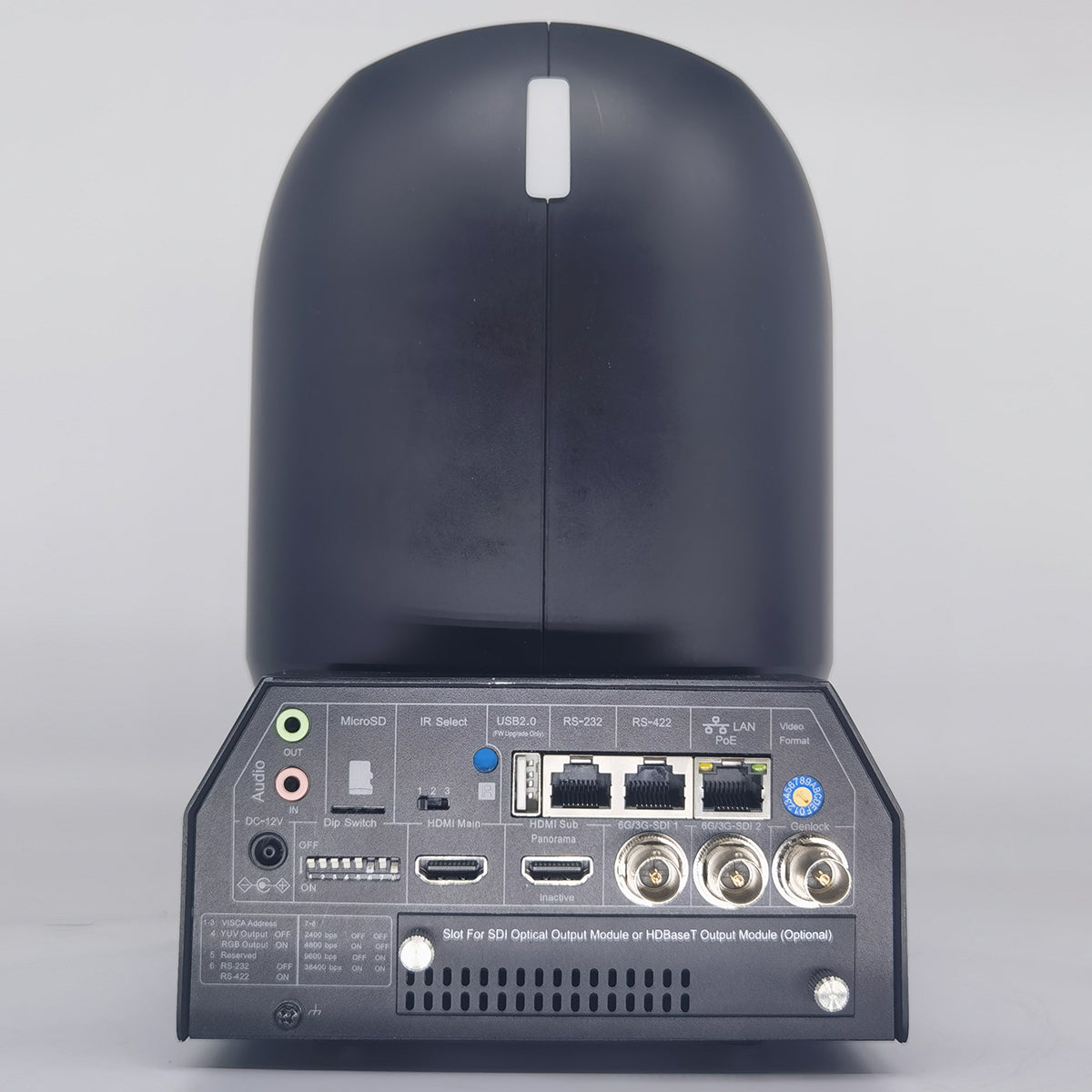

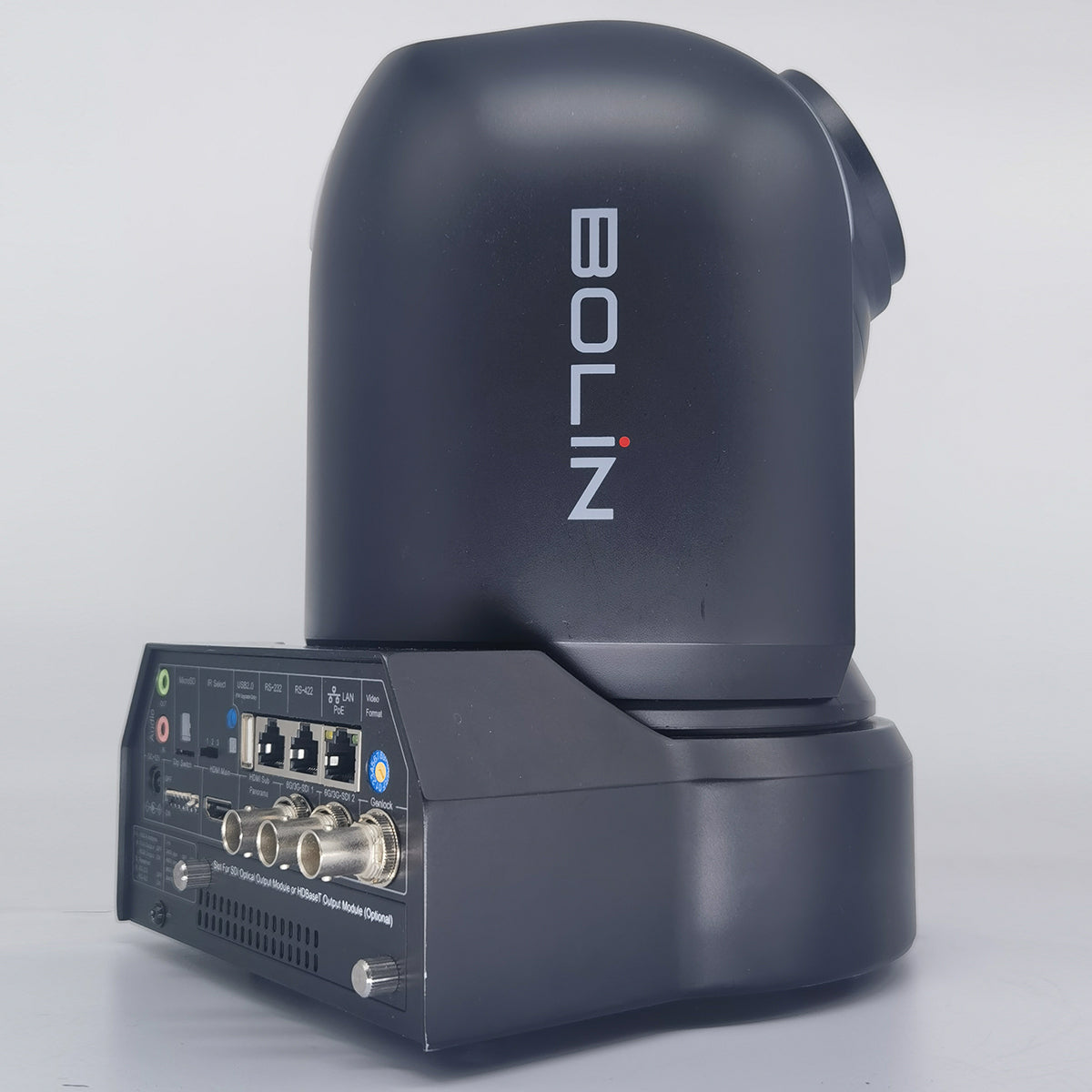

▪Camera Control Interface: RJ45X2-RS232/RS422, RJ45X1-IP Control, RJ45X1-HDBaseT, IR Remote Control
▪Control Protocol: VISCA, VISCA Over IP, Pelco D, IP Onvif
▪External Sync. Input: BNCX1, 75Ω, HD 3-level sync
▪Tally Light: Two sets of lamps, Red Color, Front and Back
▪Optional Card Slots: HDBaseT Video Card / Optical 6G-SDI Video Card
▪Video Format: HDMI/SDI: 3840 x 2160/29.97p/25p/23.98p/24p; 1920 x 1080/59.94p/60p /59.94i/60i/50p/50i/29.97p/30p/25p/23.98p/24p: 1280 x 720/59.94p/60p/50p
▪Standard: SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081 With SMPTE352 SDI Metadata Supported
▪Video Compression: MJPEG,H.264/H.265
▪Protocols: TCP/IP, ICMP, ARP, RTP, SIP, UDP, HTTP, DNS, DHCP, FTP, NTP, RTMP, RTSP
▪Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
▪Pan Movement: Horizontal:±175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°〜100°/S )
▪Tilt Movement: Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°〜50°/S)
▪Preset Position: 128（Speed adjustable: Up to 150°/S, 6 presets on remote controller.)
▪Preset Memory: YES, ( Picture Profile Preset-Preset Memory for image parameters, like: Backlight Compensation, White
▪PTZ Trace Memory: Balance, R-Gain/B-Gain, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror
▪Mount Ceiling: mount, Wall mount, Tripot
▪Operating Temperature: -10 to +40 (°C), 32 to 104 (°F)
▪Power Input: 12VDC, POE(IEEE 802.3bt), POH(Power Over HDBAaseT, IEEE 802.3bt)
▪Body color:Black
