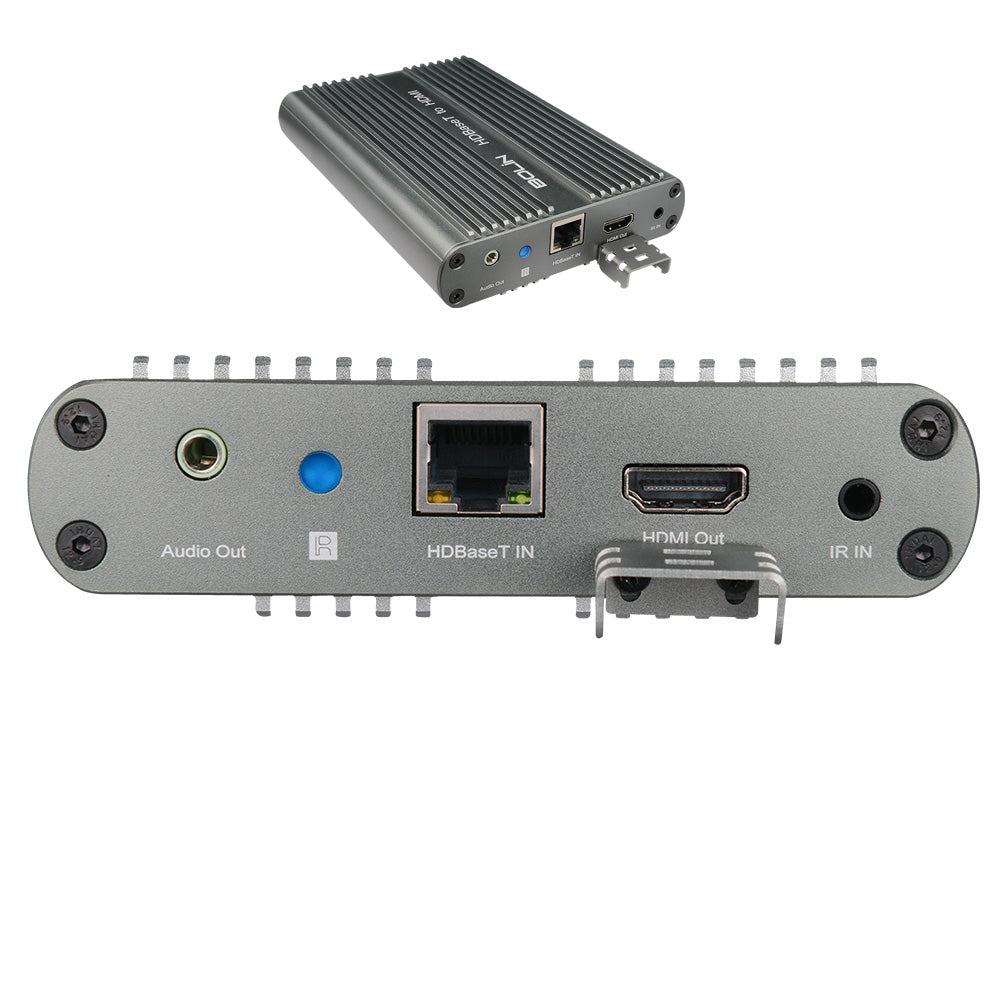

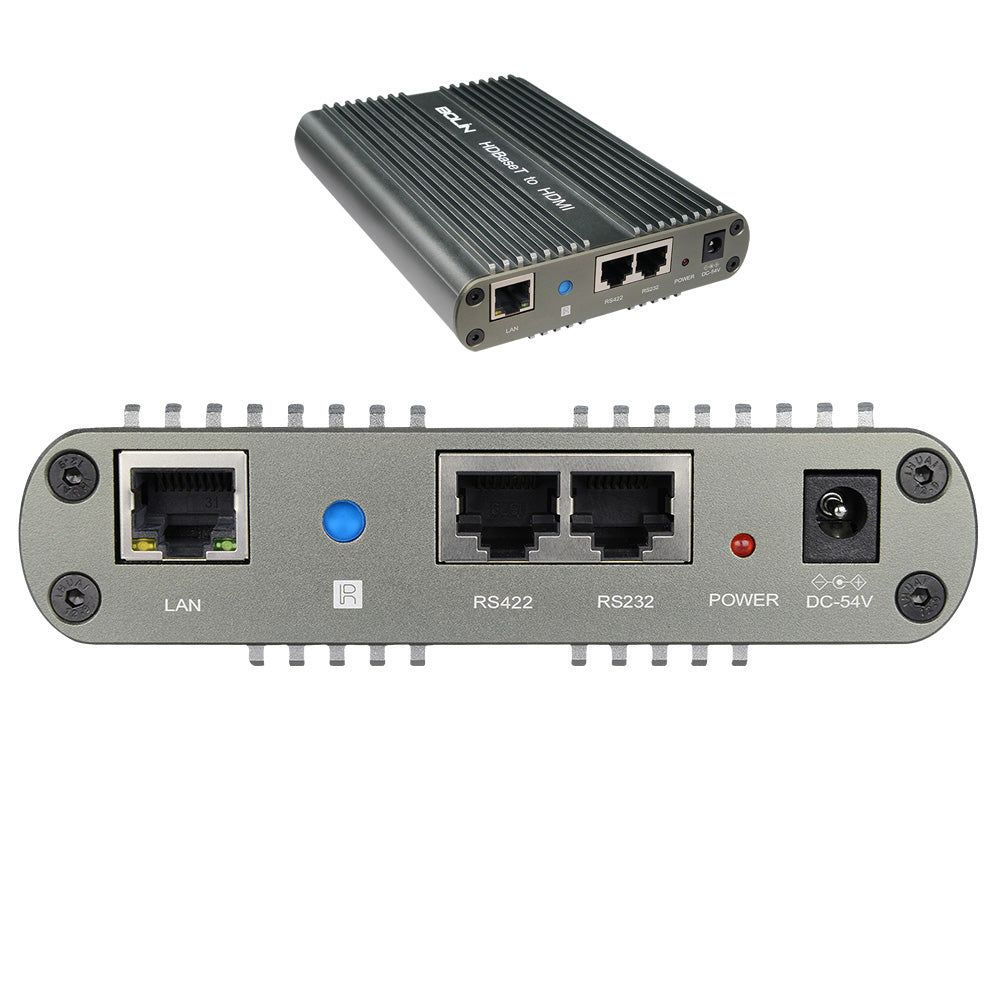

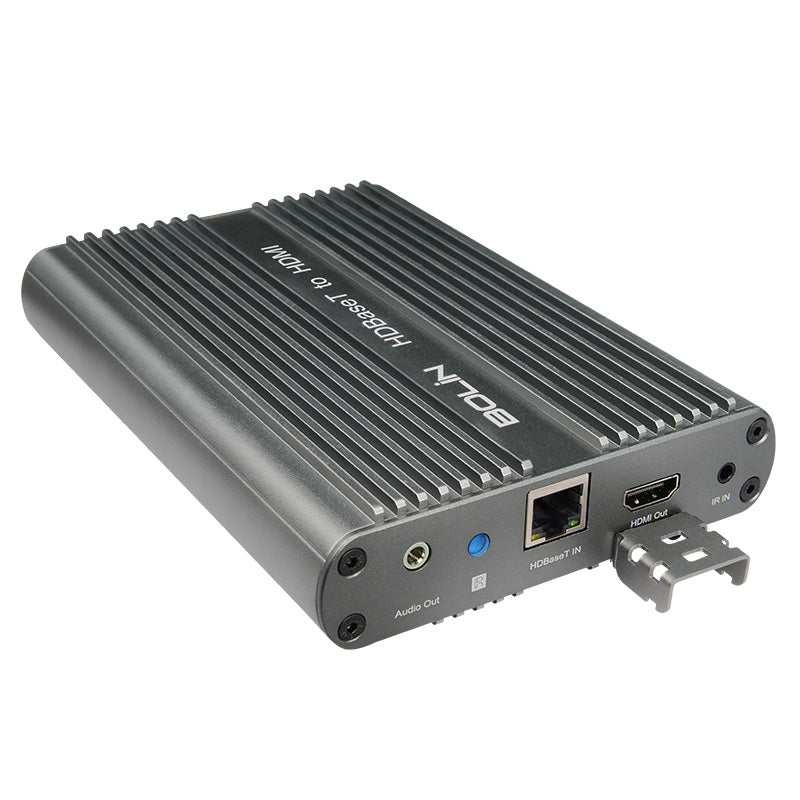

4K HDBaseT Receiver - Brand New

▪Video support: 4K: 3840x2160/29.97p/25p; HD: 1080p60/59.94/50/30/29.97/25; 1080i60/59.94/50; 720p60/59.94/50
▪HDMI compliance: HDMI 1.4 (4K)
▪HDMI over UTP: CAT5e: 100M for up to 1080p60 CAT6/CAT6a/CAT7: 100 M for up to 4K 2K/30 4:4:4 and 4K60 4:2:0
▪IP Pass-Thru: For the camera with IP control or IP streaming functionality.(Camera model specific)
▪Audio support: Surround sound [up to 7.1ch) or stereo digital audio
▪PTZ Control: RS232, RS422/485
▪IR pass-thru: One-way(RX)
▪IP Control: Support pass-through (camera model specific)
▪Video Output: 1XHDMI Type A - HDMI (4K), 1XRJ45 - IP Pass-Thru for the camera with IP control or IP streaming functionality. (Not an IP encoder)
▪Video Input: 1XRJ45-HDBaseT(4K),
▪Control Interface: 2XRJ45: RS232, RS422/485 (RJ45 to Phoenix Connector adapter included), IR-1x 3.5mm IR RX
▪Audio Output: 3.5mm Jack
▪Operating Temperature: -20 to +60 (°C)
▪Power Input: DC54V, 2.77A
▪Power Output: Provides power to camera over CAT6 cable, POH(Power Over HDBaseT
